Flow-chem Reactor

Pilot Plant

CHARACTERISTICS

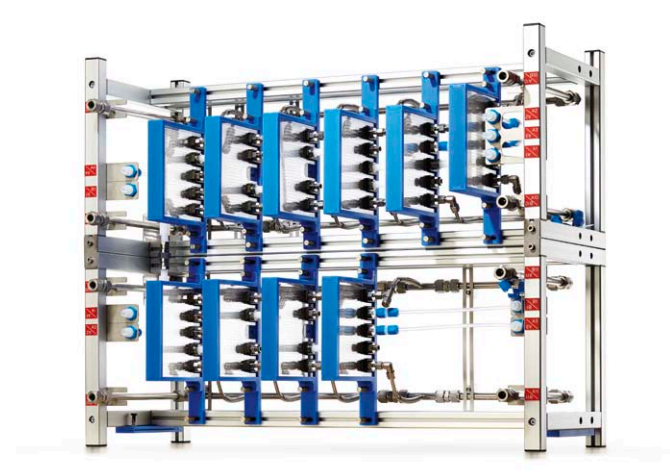

  • Reactor :
    • Manufacturer : Corning Model G1
    • 10 Heart shaped reacting plates
    • Operation temperature range : -60ºC to 250ºC
    • Maximal pressure : 18 barg (260 psig)
    • Flow rate : 30 to 200 mL/min (up to 80 tons/year)

  • Auxiliaries Equipement :
    • 2 feeding pumps (10 to 100 mL/min)
    • 2 feeding pumps (0 to 10 mL/min)
    • Principal thermal circulator (10 kW, -45 to 250°C)
    • Secondary thermal circulator (2,5 kW, 20 to 250°C)
    • 2 pressure regulators Zaiput BR-1000
    • Liquid-liquid or gaz-liquid membrane separator (Zaiput SEP-200-SS)

USES

  • Continuous synthesis and formulation

https://www.corning.com/media/worldwide/Innovation/documents/G1_WEB.pdf
