Filtrability Press Test

Test and Analysis

DESCRIPTION

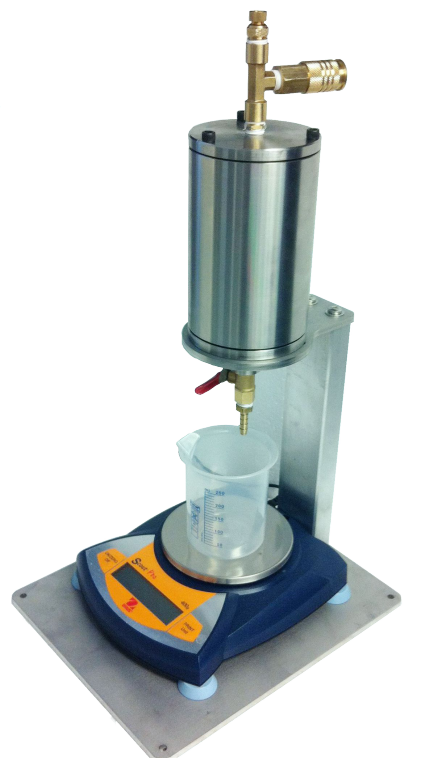

The compression apparatus is designed for laboratories filterability tests to determine drainage speeds dryness of pasty products (simulaon mechanical dewatering equipment: filter presses, belt filters, centrifuges, etc.).

APPLICATIONS

  • Determination of the specific resistance to filtration
  • Determination of the compressibility coefficients
  • Determination of dryness limits
  • Determination of drainage rates
  • Determination of liquid extraction rates

USES

The pulp / sludge sample to be tested is introduced into the pressure chamber of the apparatus, a pressure is applied to the sample for one determined me to extract liquids. Uses 70mm diameter paper filters. The operating pressure can be adjusted from 0 to 120 PSI. This unit meets the standards.

SPECIFICATIONS

  • FILTER DIAMETER: 70mm
  • SAMPLE VOLUME: 100 to 300 ml
  • COMPRESSED AIR INLET: 1/4″ NPT
  • SERVICE PRESSURE: 0 to 120 PSI
  • DIMENSIONS:
    • Height 450mm
    • Width 230mm
    • Depth 280mm
  • MATERIALS:
    • Treatment chamber: STAINLESS STEEL
    • Support: STAINLESS STEEL/ALUMINUM
